The BeCOMS® System from motcom consists of:
- one Slip Ring Encoder (SRE), installed with a vibration damper on the free end of the crankshaft via a mechanical adapter set
- one Evaluator serves as a local control and for evaluation and display of all values. It can transmit all data via RS485 interface to a computer running the BeCOMS® Data_Logger software (optional) for enhanced visualisation and data storage. The Data_Indicator and motcom Analysis software serves as an offline analysis tool
- one Set of mechanical parts and cable for mounting the SRE at the engine consists of engine cover, adapter disc, intermediate housing and cover, cable and connectors
- one User Manual incl. CD with Software and instruction manuals
Optional:

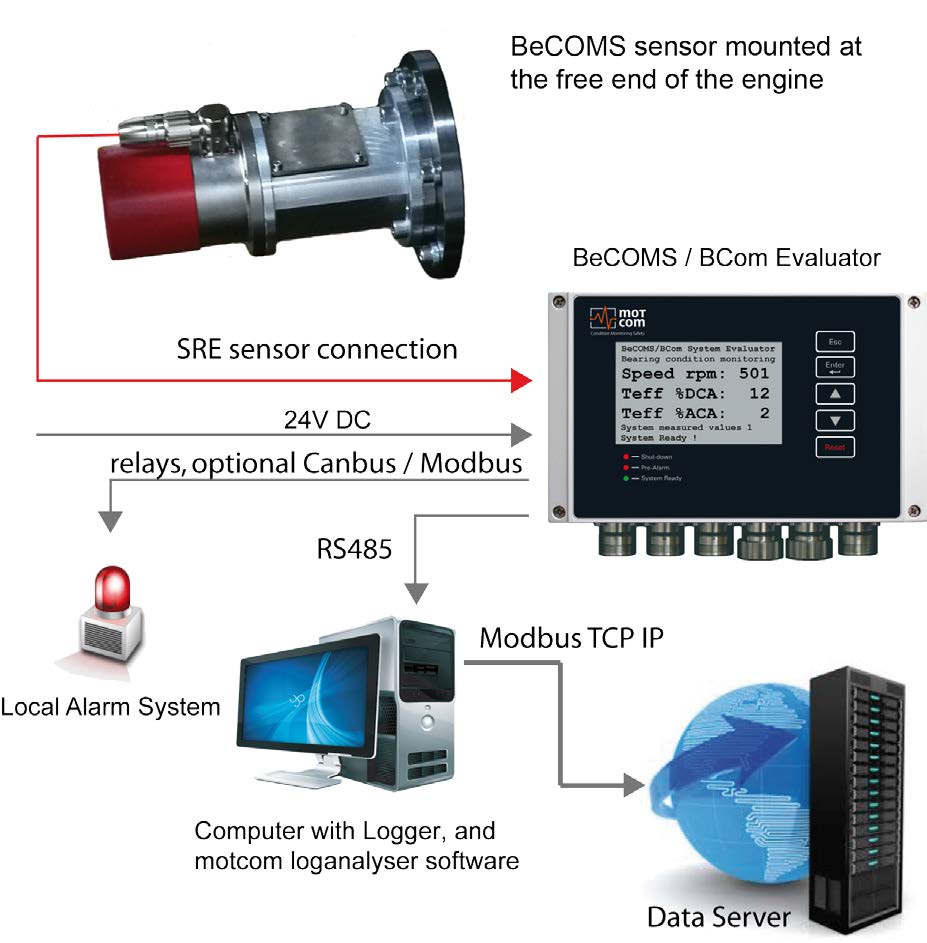

- one Data Logger PC/Notebook complete installed with BeCOMS® Data_Logger Software (able to connect with external Data Server over Modbus TCP/IP, see Fig. 3.1) and one CD including Software installation files and a soft copy of this User Manual,
