| Menu level 1 | Menu level 2 | Menu level 3 | Description |
|---|---|---|---|

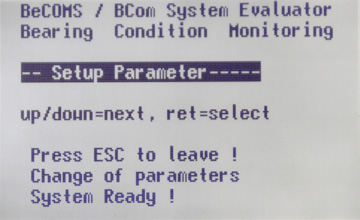

 Setup Parameter | View and change BeCOMS® parameters. If the sublevel was entered (see Table 1 on page 4.9), pressing [Esc] restarts the Evaluator To get write access to these parameters, a PIN must be entered (see Table 2 on page 4.11) |
Table 1 Setup Parameter Details
| Menu level 1 | Menu level 2 | Menu level 3 | Description |
|---|---|---|---|
 TS Alm-Level DC | The value of DC main alarm level in the range of 0 to 5. The higher the value, the less sensitive is the system. The 0 value disables the DC alarm. | ||
 TS PreAlm-Level | The value of DC pre-alarm level in percents of DC main alarm. Possible values: 40 to 100. | ||
 RPM Alarm-Level | The value of overspeed alarm in RPM. Possible values: 0 to 3000, step 50. The 0 value disables the alarm. | ||
 TS Alm-Level1 AC | The value of AC main alarm level in the RPM zone 1. Possible values: 0 to 5. The 0 value disables the alarm. | ||
 TS Alm-Level2 AC | The value of AC main alarm level in the RPM zone 2. Possible values: 0 to 5. The 0 value disables the alarm. | ||
 RPM for Level2 | Engine rotation speed in RPM which defines the boundary between RPM zone 1 and RPM zone 2. | ||
 Start Alminhibit | Time interval in seconds immediately after engine start during which the main alarm is disabled. | ||
 TS Test Time | Time interval between test pulses, possible values: 1 min to 10 min. Test pulses help to check if the SRE sensor functions correct. | ||
 TS Test Len | The length of test pulse. Possible values: 1 s to 15 s. | ||
 IS Impuls Offset | The offset between TDC of cylinder 1 and the synchronisation pulse at the channel 0. This value cannot be set at the Evaluator using the “Up” and “Down” buttons. It is used during the impulse offset setup procedure as an indicator. To start the procedure, a PIN must be entered (refer to Table 2 on page 4.11) | ||
 PIN Impuls Offs | PIN for impulse offset setup, the procedure is the same as described in Table 2 on page 4.11 | ||
 TSeff ena for DC | Enable or disable (values 1 and 0 accordingly) calculating effective value of thermosignal in percents of DC alarm level. | ||
 Values for TSeff | Number of points for calculating effective value of thermosignal in percents of DC alarm level. | ||
 Values for TSeff | Scale factor for DC alarm level, possible values: 80% to 199%. | ||
 AC Alarm percent | Scale factor for AC alarm level, possible values: 80% to 199%. |
