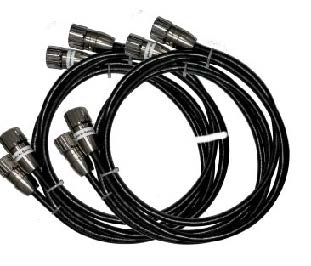

BeCOMS® – Mechanical Adapter and Cable

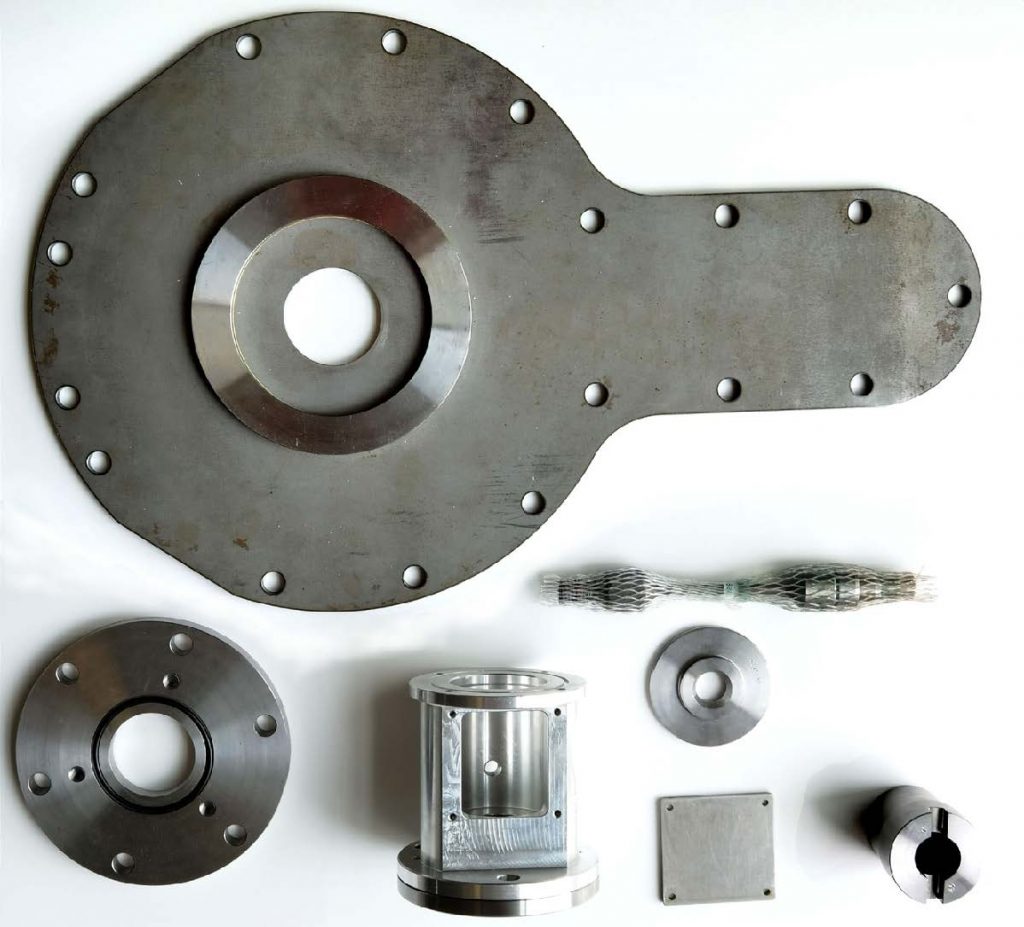

Attention The adapter is tailor-made for each type of engine (for an example see Fig. 3.4); the individual parts must not be removed by untrained / non- motcom personnel. Alignment errors cause high wear and tear and consequential damage. As a result, the shaft and the SRE are damaged, which leads to the failure of the BeCOMS® system.

A guarantee in the event of damage is excluded by motcom GmbH!

Mechanical Structure

For each installation the adapter is tailor-made for a particular type of engine; the individual parts must not be removed by untrained / non-motcom personnel.

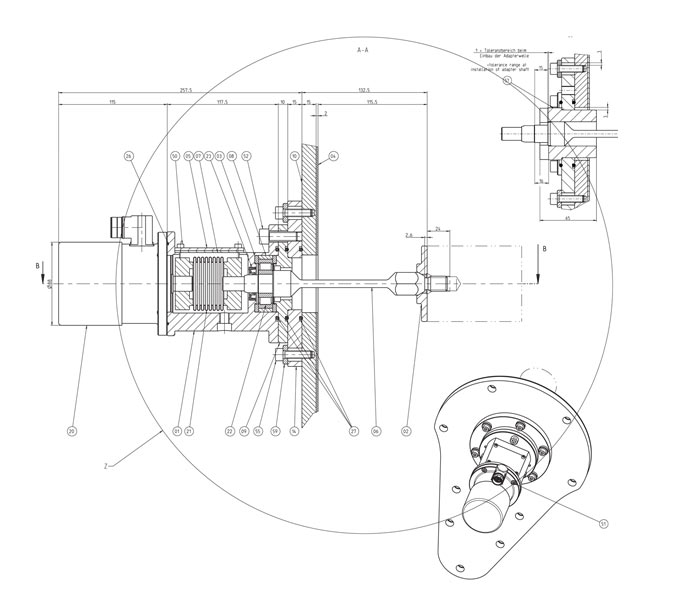

Fig. 3.5 shows an example of the adaptation with all the individual parts required. Alignment errors cause high wear and tear and consequential damage / failure on the shaft and SRE.

A guarantee in the event of damage is excluded by motcom GmbH!

Table 3.1 Mechanical parts, shown in Fig. 3.5
