BeCOMS® – Installation Position

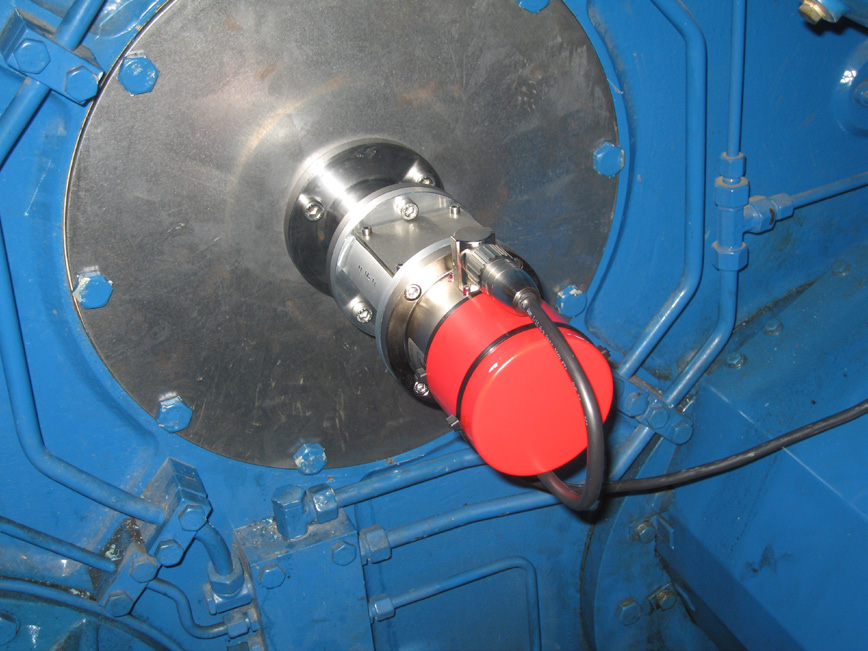

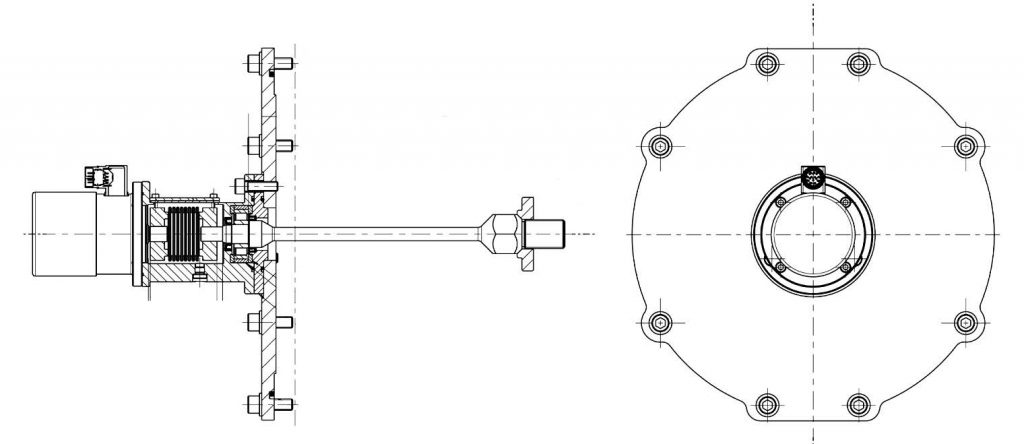

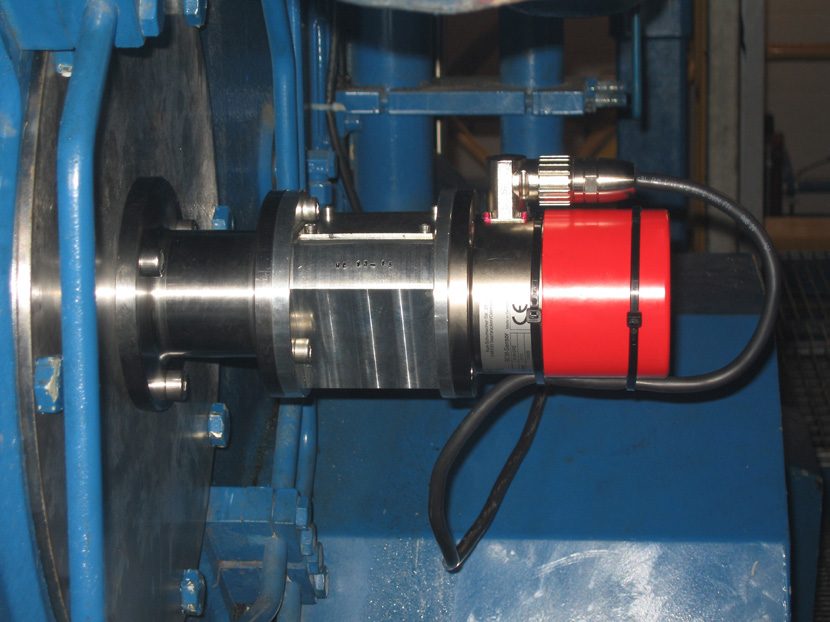

The Slip Ring Encoder  is installed at the end of the crankshaft of the combustion engine via an engine specific adapter (refer to Fig.5.1 and Fig.5.2). The evaluator can be installed in the engine room near the engine or, alternatively, in the engine control room. The length of signal cables must not exceed 100 m.

Example for an Installation
