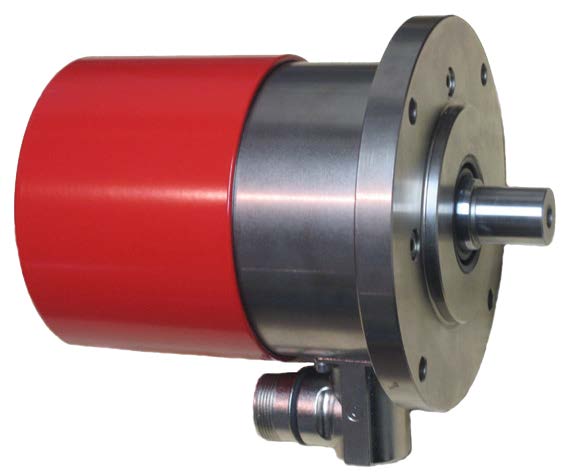

| . BeCOMS® Slip Ring Encoder (SRE) Is installed with a vibration damper on the free end of the crankshaft via a mechanical adapter set |  Fig. 1.1 Slip Ring Encoder (SRE) |

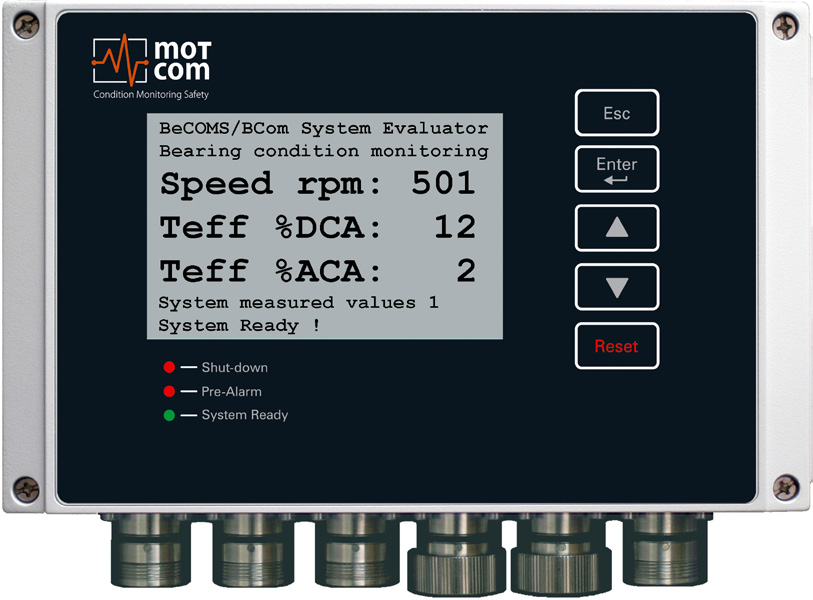

| • BeCOMS® Evaluator Serves as a local control and for evaluation and display of all values. It can transmit all data via RS485 interface to a computer running the BeCOMS® Data_Logger software (optional) for enhanced visualisation and data storage. The Data_Indicator and motcom Analysis software serves as an offline analysis to |  Fig. 1.2 Evaluator |

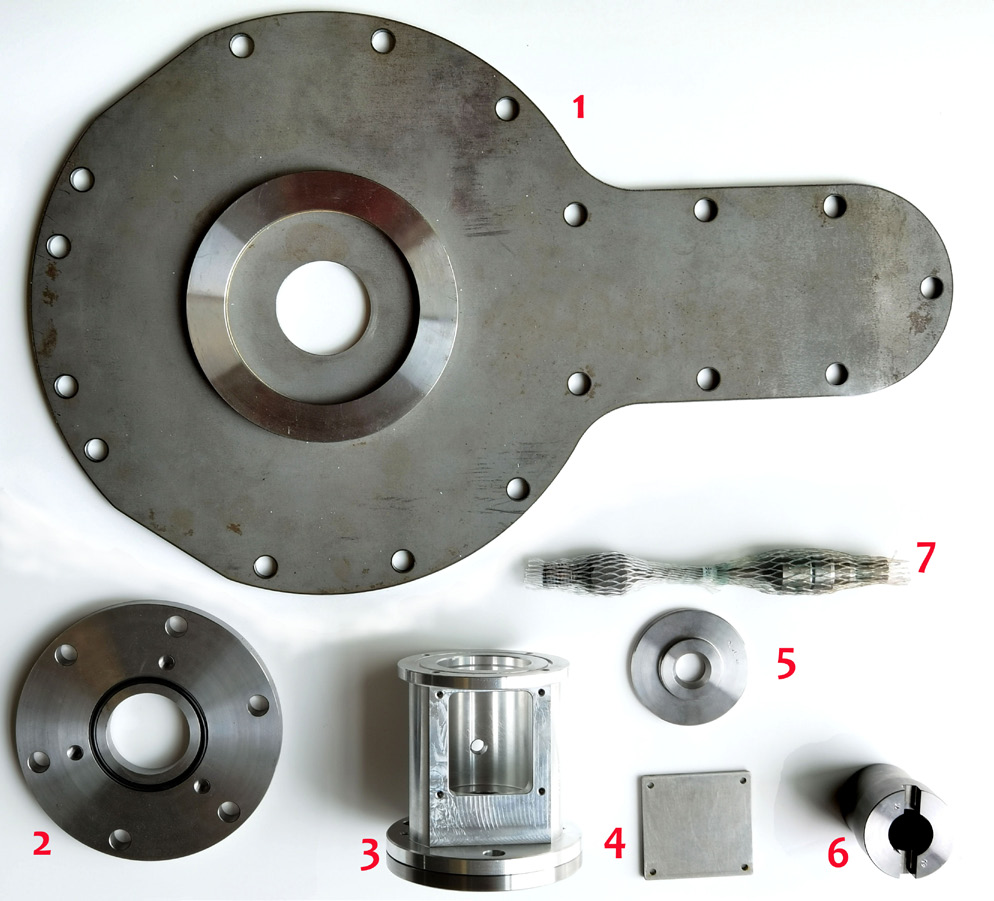

| • Mechanical adapter parts and cable for mounting the SRE at the engine Consisting of: 1 engine cover 2 adapter disc 3 intermediate housing 4 cover 5 Adapter flang 6 Centering tool 7 Adapter shaft |  Fig. Cable ready to use  Fig. 1.3 Mechanical Parts and assembled cable |
• User Manual incl. CD with Software and instruction manuals
Optional
- Data Logger PC or Notebook, completely installed with:
- Operating System Windows® 1x, 64 Bit
- BeCOMS®Data_Logger Software
- CD incl. Software installation files and a soft copy of the User Manual
| • Software motcom® Loganalyser software, an auto analysis tool for BiCOMS® Logfiles. |  Fig. 1.4 CD with motcom® Loganalyser software |
