The main components of a SiCOMS® system are:
| • 1…..16 sensors SiSe/OC xx-xx • 1…..16 SOG (Splash Oil Guard) |  Fig. 1.1 SiCOMS® sensor SiSe/OC20-68 incl. SOG (Splash Oil Guard)and Diffusor |
| • SiCOMS® Evaluator Serves as a local control and for evaluation and display of all values. It can transmit all data via RS485 interface to a computer running the SiCOMS® Data_Logger software (optional) for enhanced visualisation and data storage |  Fig. SiCOMS® Evaluator |
| • SiCOMS® Cable and connector set specific to the engine / installation |  Fig. Cable ready to use |
• User Manual incl. CD with Software and instruction manuals
Optional
- Data Logger PC or Notebook, completely installed with:
- Operating System Windows® 1x, 64 Bit
- OMD Logger Software
- CD incl. Software installation files and a soft copy of the User Manual

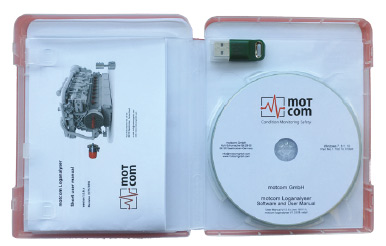

| • Software motcom® Loganalyser software, an auto analysis tool for SiCOMS® Logfiles. |  Fig. 1.4 CD with motcom® Loganalyser software |

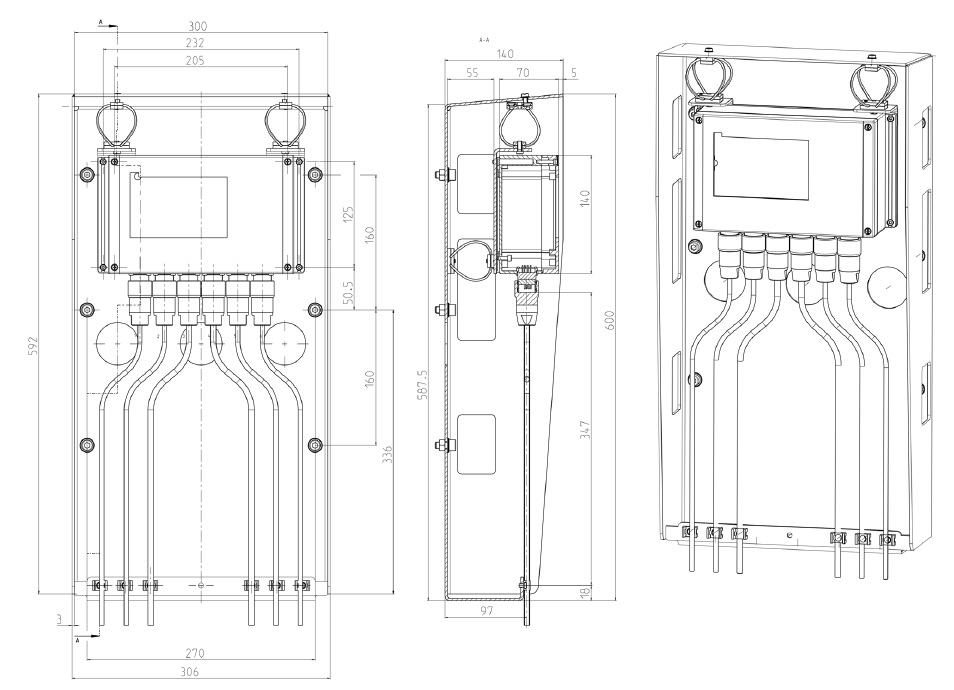

- Vibration Damping Module

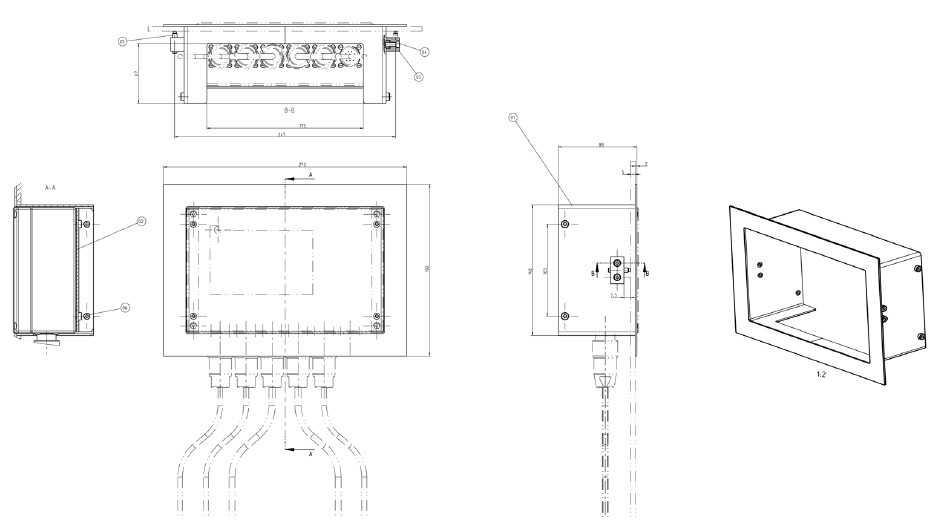

- Inlay Module
